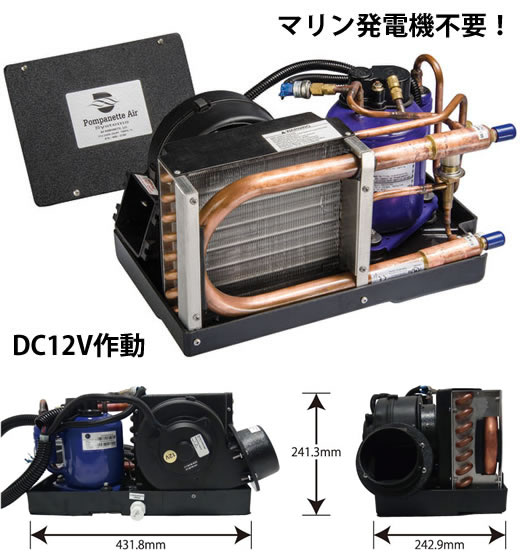

Now you can stay cool without the expense of a generator. Designed to cool most boats with a cabin volume of up to 425sq.ft., this air conditioner features a compact, lightweight design that maximizes potential locations in the cabin.
The kit includes most everything necessary for installation, including 12 1/2' of 4" flex ducting, 4" supply air grille, return air grille, thermostat, thermostat cable, self-priming water pump, water strainer, 25' water hose, hose clamps, water fittings, inlet thru-hull, ball valve, and overboard discharge thru-hull. Items that must be purchased separately are a 50A circuit breaker, electrical wire, battery switch, plus miscellaneous hardware and sealants.
Total run time depends on the type and condition of your batteries. In general, a typical pair of group 27 batteries provides about 3 1/2 hours of continuous operation.
- Btu/Hour: 6,000Btu
- Reverse Cycle: No
- Discharge: Rotatable 90° (horizontal to vertical)
- Power Requirements: 12V DC
- Draw: 40A
- Refrigerant: R410A
- Dimensions: 17"L x 9 9/16"W x 9 1/2"H
- Weight: 28lb.
- Included Equipment: (2) 1/2" FPT X 5/8" barb, (3) 1/2 MPT X 5/8" barb, (1) 1/2" bronze speed scoop, (1) 1/2" bronze ball valve, (1) 5/8" plastic thru-hull, (1) 1/2" plastic strainer, fifteen 5/8" stainless steel hose clamps, (25') 5/8" water hose, (1) 4" round white plastic supply grille, (1) 8" X 8" white plastic return air grille, 12 1/2' 4"dia. insulated flex ducting, (1) 12V DC self-priming water pump, (1) digital thermostat, (1) thermostat interface cable
|
